CAM-MIPI327RAW

原价为:¥289.00。当前价格为:¥249.00。 未税

DATASHEET: https://github.com/INNO-MAKER/CAM-MIPI327RAW-and-CAM-MIPI462RAW

Bulk Orders: sales@inno-maker.com





Product Documents

库存 100 件

x
Compare
分类: SKU: CAM-MIPI327RAW

描述

[Descriptions:]

  • We support customozed production service, Fast redesign and Fast delivery.
  • PI Camera IMX327LQR module with SONY IMX327LQR Sensor connects via a ribbon cable to the CSI connector on the Raspberry Pi. It is a fully V4L2 compatible device.

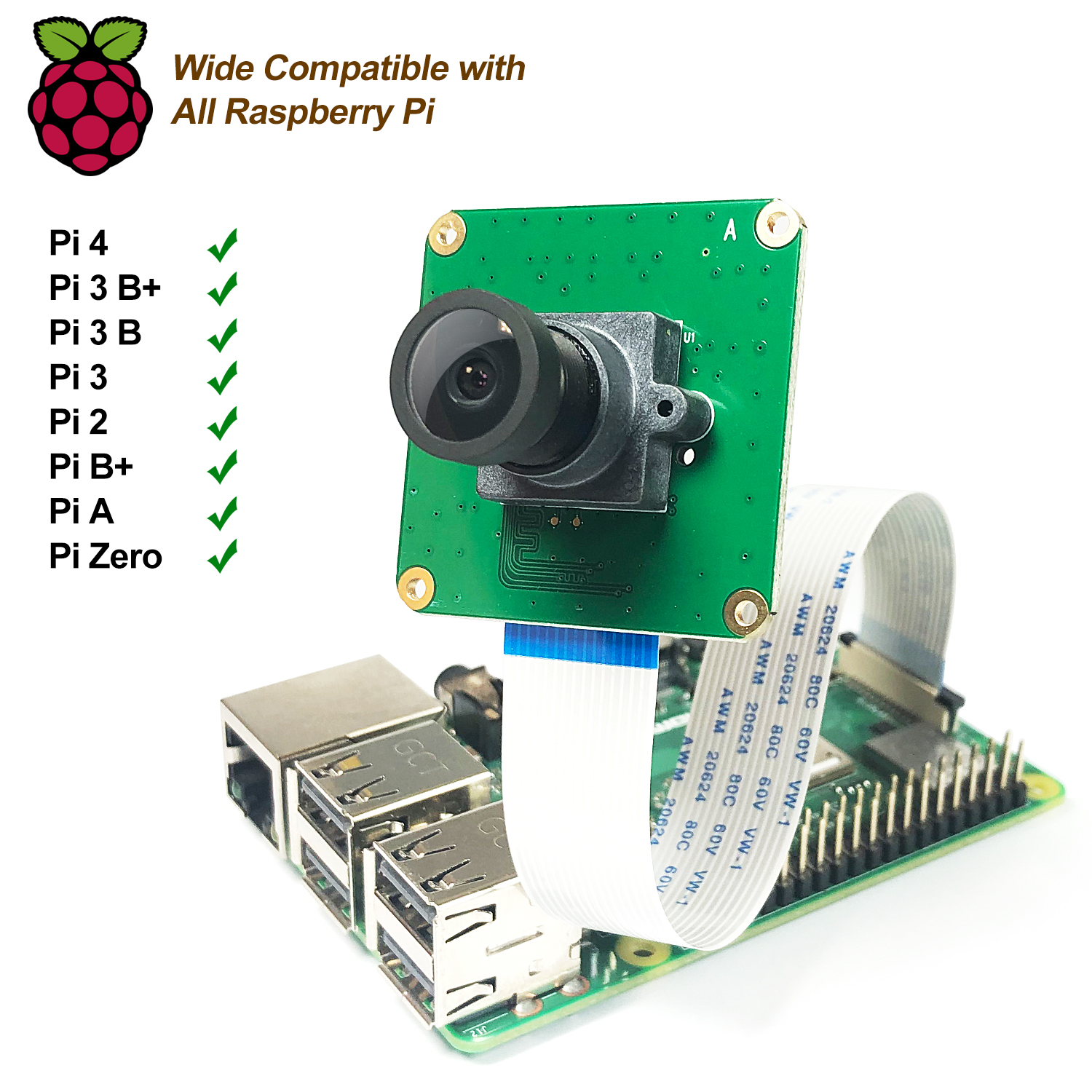

  • PI Camera IMX327LQR module can be connected to a number of Raspberry Pi Boards, like Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.

[Technical Parameters:]

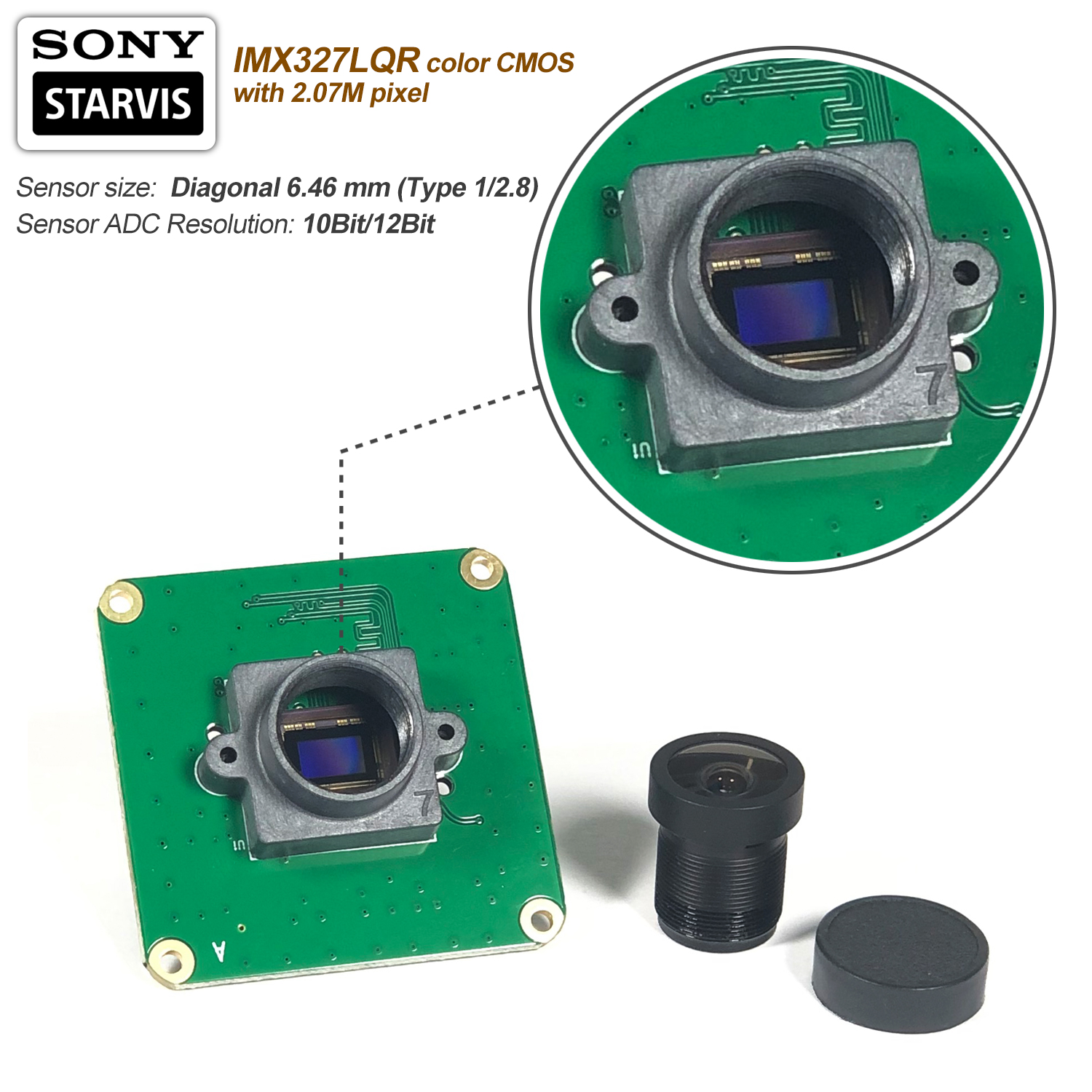

  • Sensor type: SONY STARVIS IMX327LQR color CMOS with 2.07M pixel.
  • Sensor size: diagonal 6.46 mm (Type 1/2.8).
  • Sensor ADC Resolution: 10Bit/12Bit.

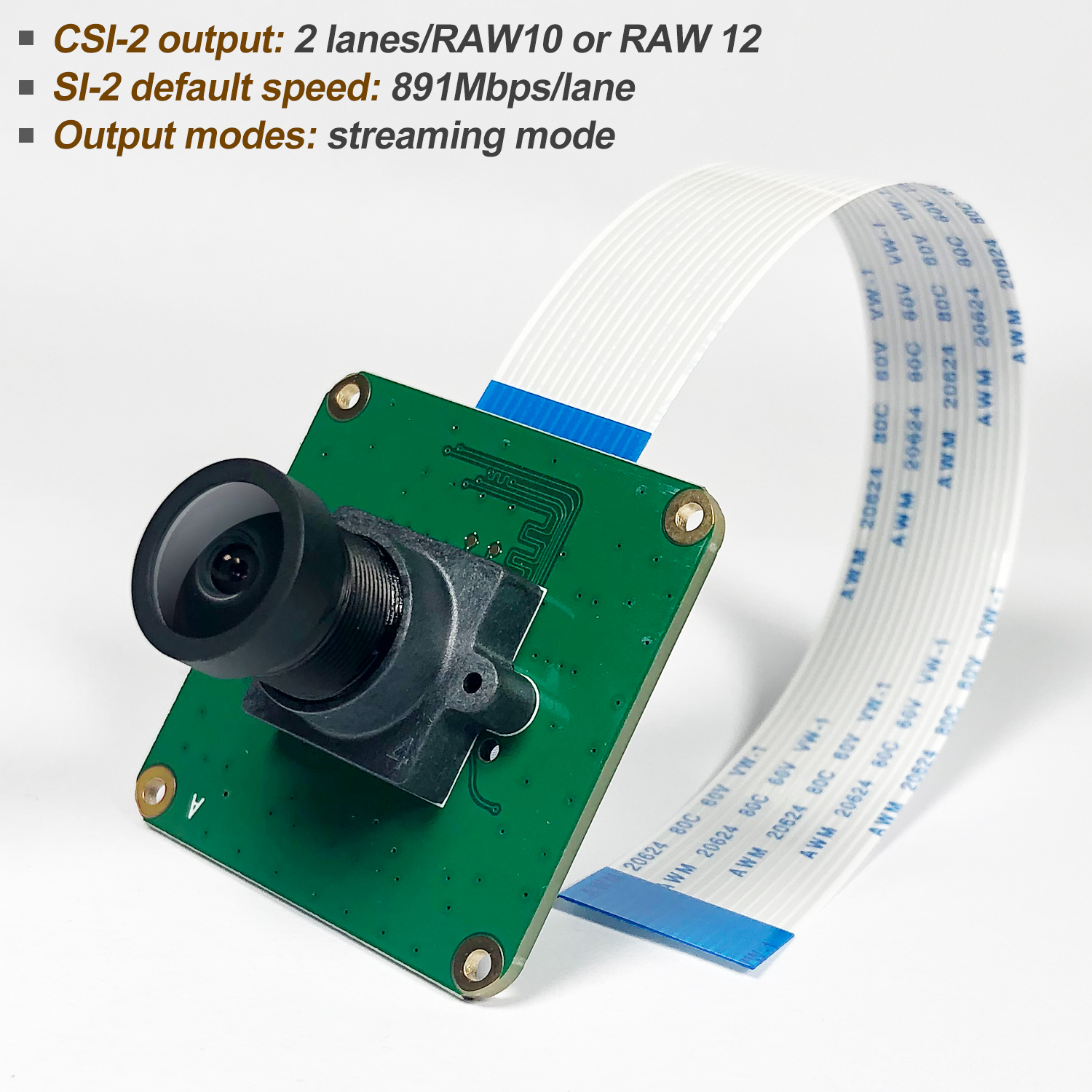

  • CSI-2 output: 2 lanes/RAW10 or RAW12.

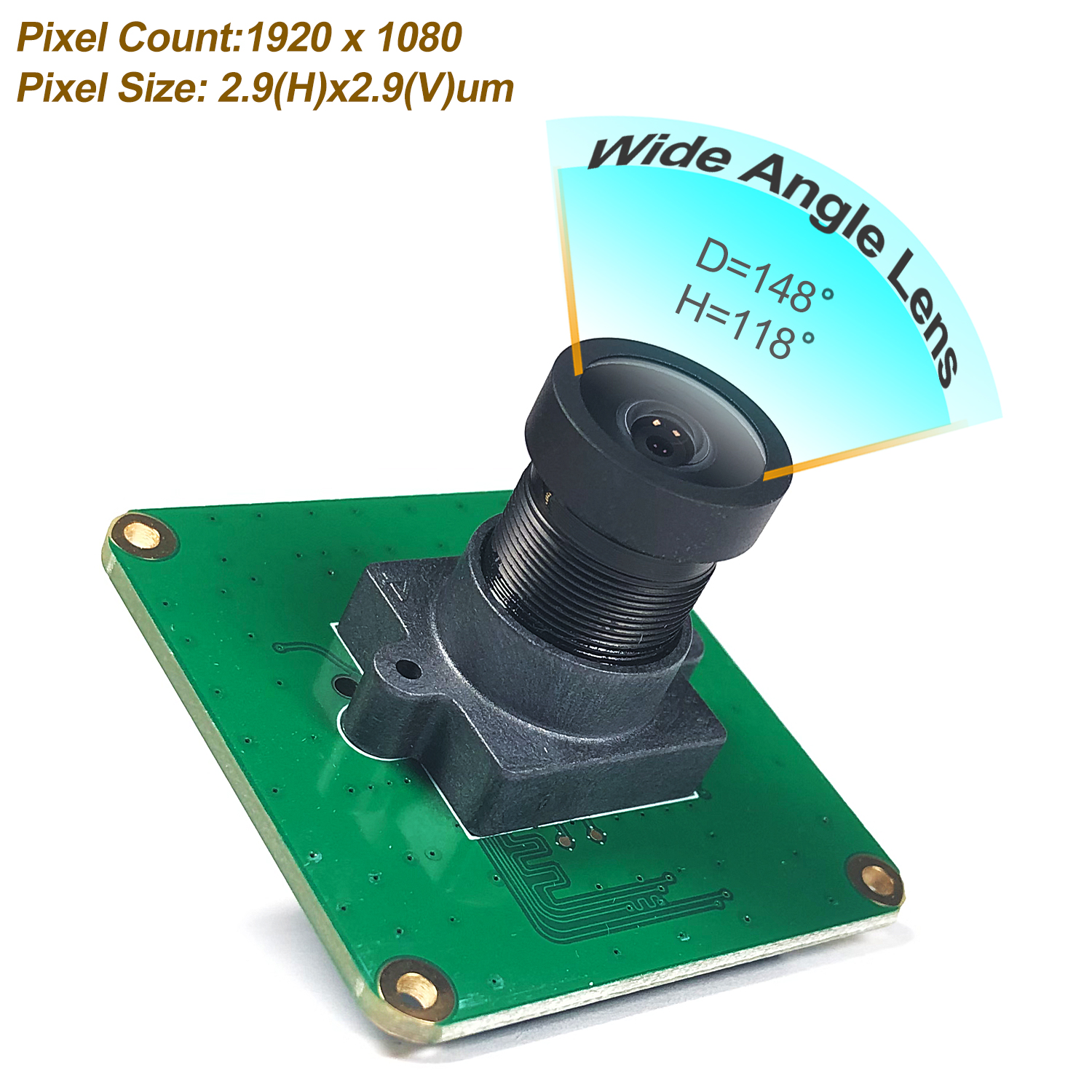

  • Pixel Count:1920 x 1080.
  • Pixel Size: 2.9(H)x2.9(V)um.
  • CSI-2 default speed: 891Mbps/lane.
  • Output modes: streaming mode.
  • Shutter resolution: 1 horizontal unit.
  • Gain: 0—72dB.
  • Video OutputModes:
    Mode0 1920×1080 30fps,SRGGB10P(option,with 37.125MHZ OSC)
    Mode1 1920×1080 60fps, SRGGB10P.
    Mode2 1920×1080 50fps, SRGGB12P.

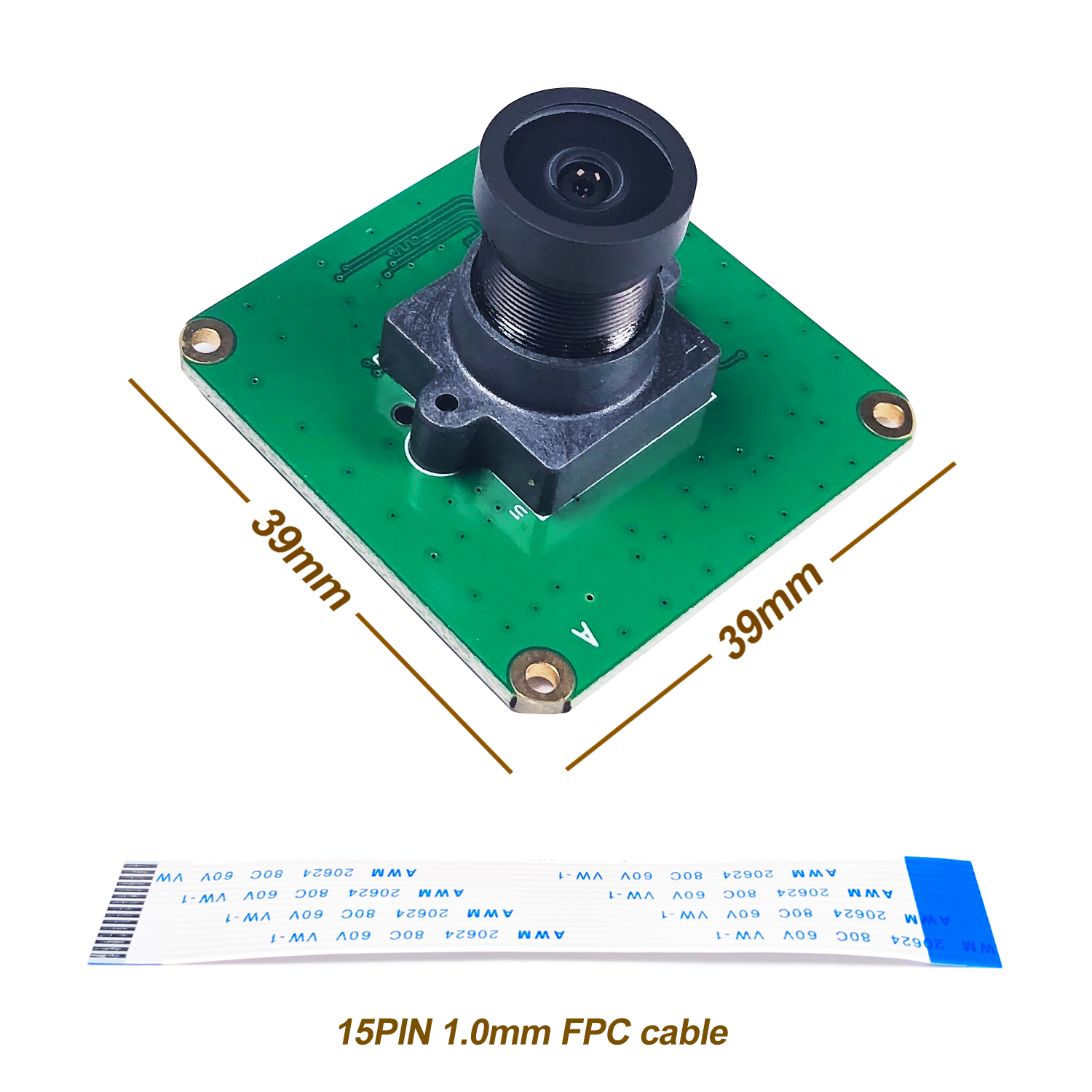

  • Board Size:39mm x39mm.
  • Connector: 15PIN 1.0mm FPC cable.
  • Mounting Holes: 4XD2.2mm.

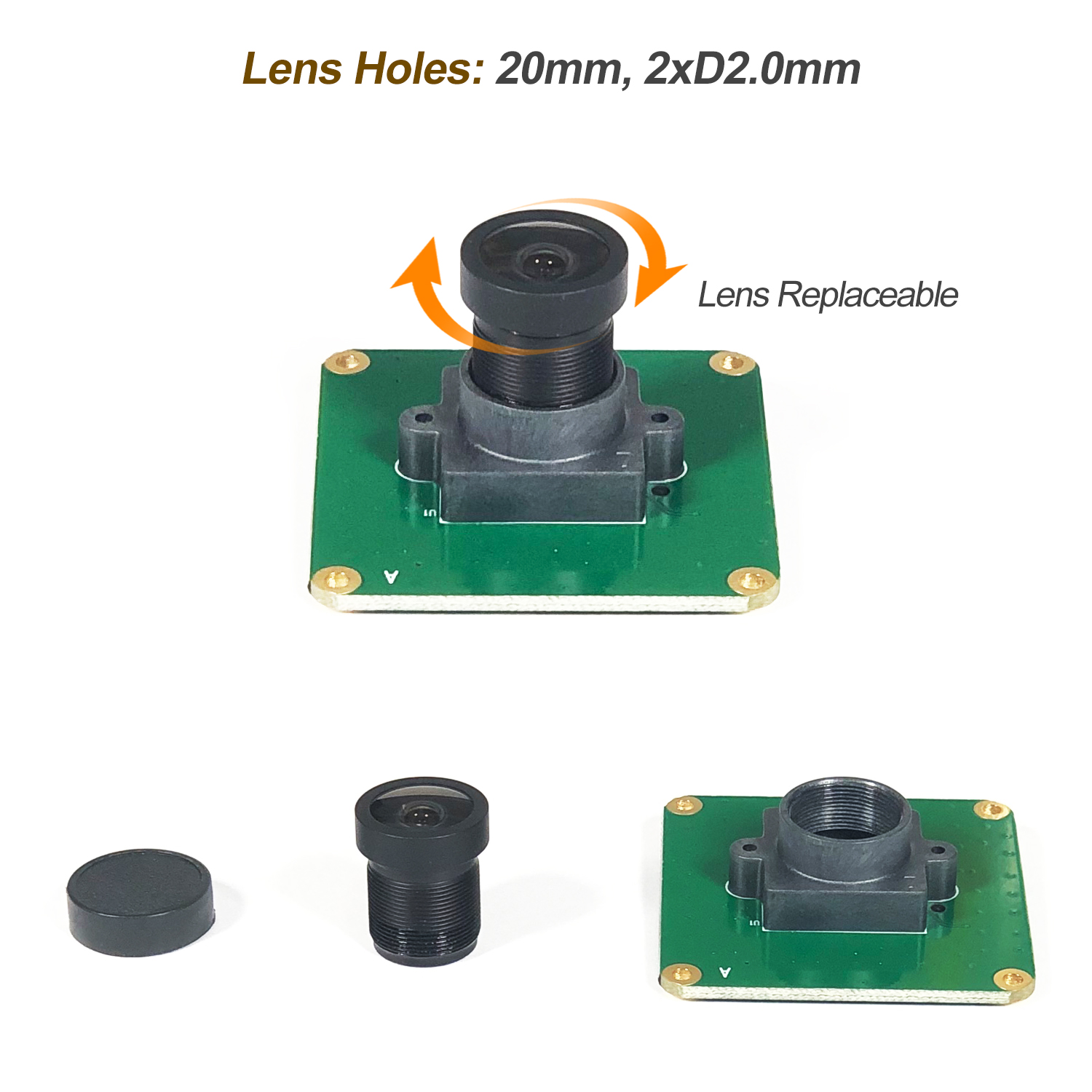

  • Lens Holes: 20mm,2xD2.0mm.

[Packing List:]

  • 1 x CAM-MIPI327RAW Camera Module
  • 1x 15PIN Ribbon Cable
