CAM-MIPI296RAW-Trigger

原价为：¥399.00。当前价格为：¥299.00。 未税

Datasheet: https://github.com/INNO-MAKER/cam-imx296raw-trigger

Features:

  • Support up to 60fps at 1456×1088 Pixels,Compatible with rasberry pi GS camera;
  • Comes with 1x M12 Len-seat and 1xCS Len-Seat, 1x M12 wide angle Len;
  • Support Pi 4B/Pi 3B+/Pi 3B/Pi 3A+/CM4/CM3+/CM3 Directly with libcamera tools;
  • Output format Y10 with Resolution 1456*1088 up to 60fps (InnoMaker Driver);
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);
  • Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards
  • Support Innomaker driver with isolated hardware External Trigger And isolated Strobe function, control by v4l2-ctl -l tools.(InnoMaker Driver did not support libcamera and only support specify system version)

Datasheet

x
Compare
分类： SKU： 20

描述

CAM-MIPI296RAW

Description

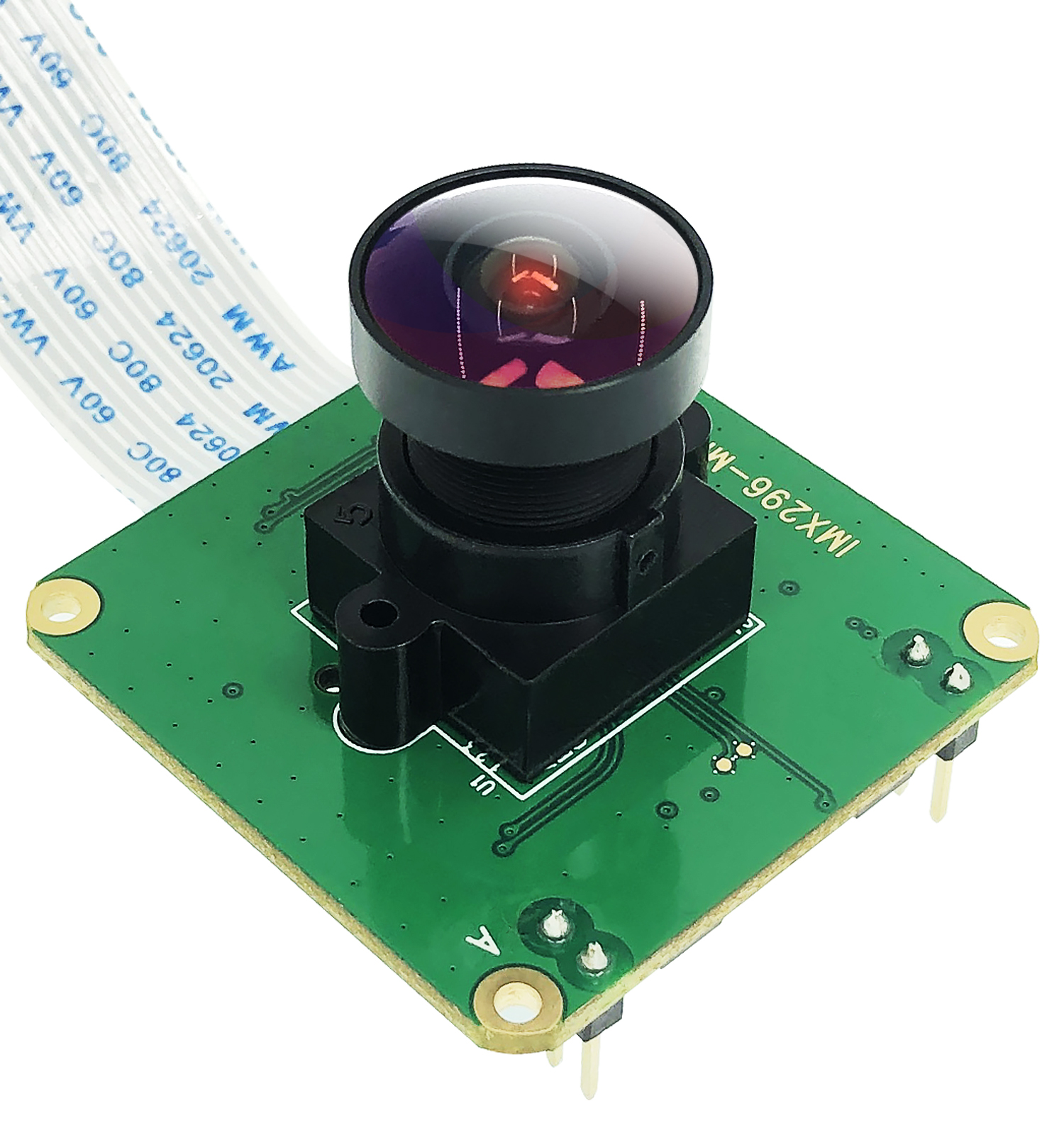

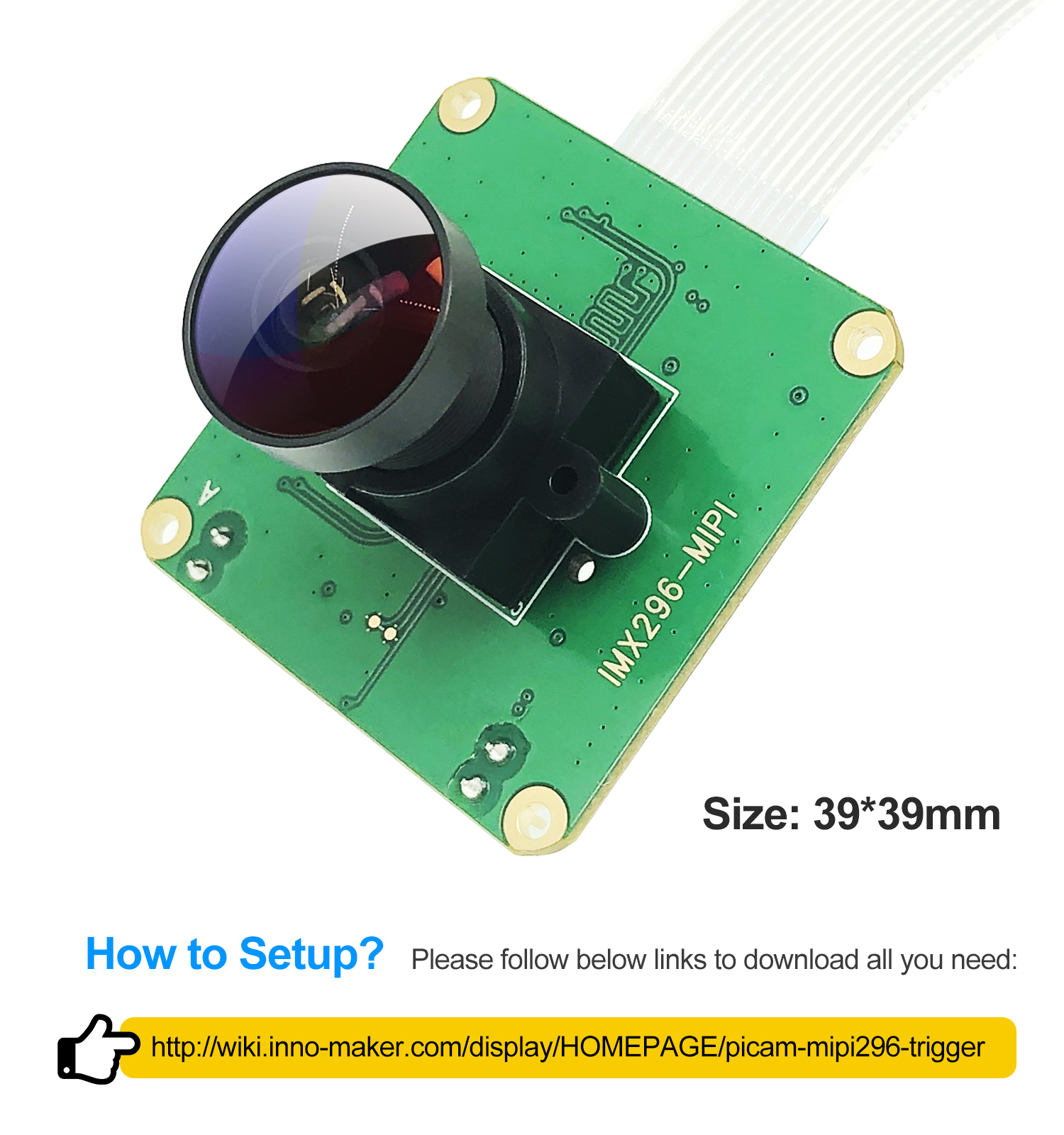

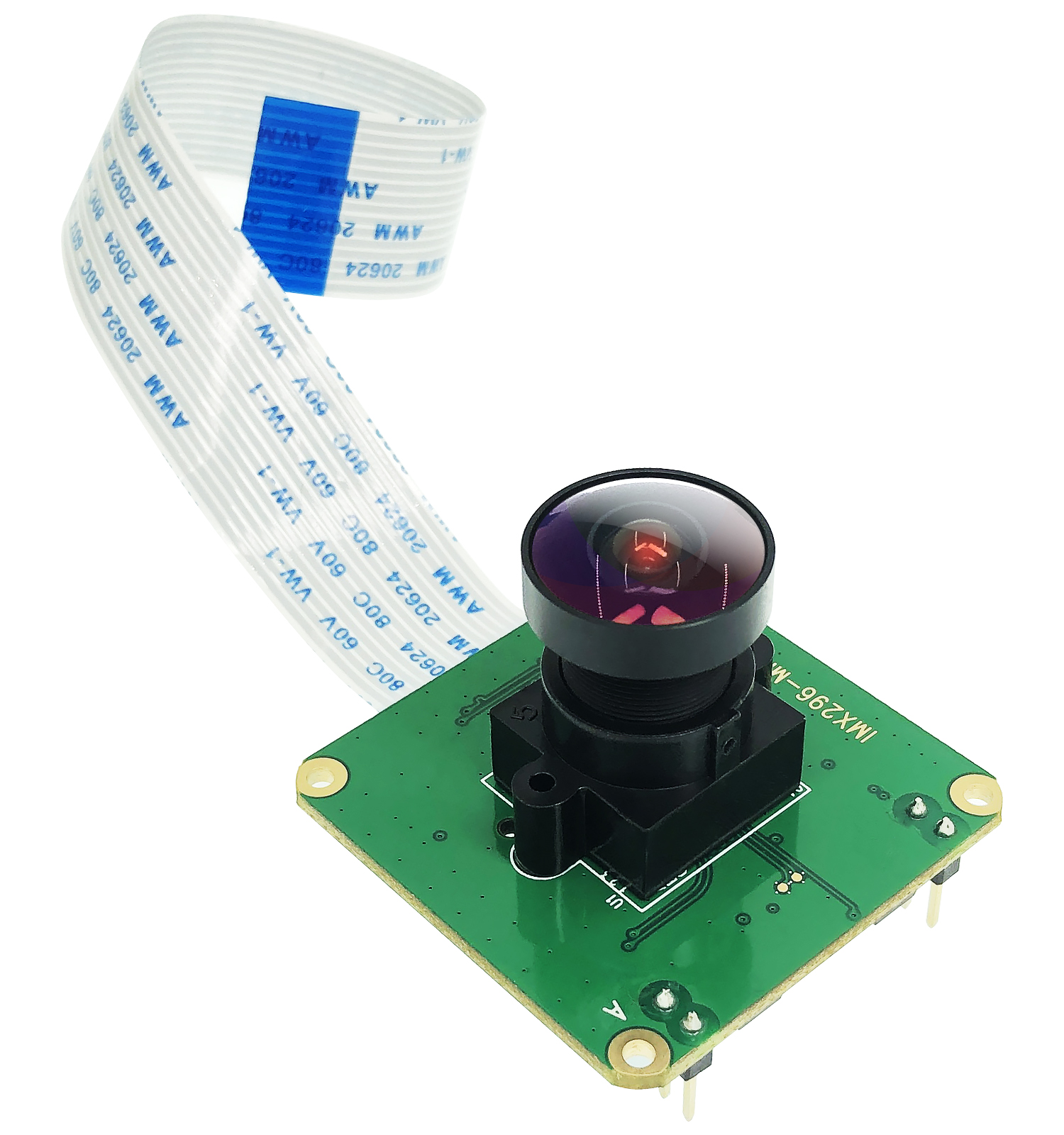

CAM-MIPI296RAW is a Global Shutter Camera with IMX296LLR-C CMOS Sensor Module

support up to 60fps at 1456×1088 Pixels operate with shorter exposure times down to 30µs, given enough light than a rolling shutter camera, which makes it useful for high-speed photography.

  • Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards
  • Support Innomaker driver with isolated hardware External Trigger And isolated Strobe function, control by v4l2-ctl -l tools.
  • (InnoMaker Driver did not support libcamera and only support specify system version)

Module Features:

  • Support up to 60fps at 1456×1088 Pixels,Compatible with rasberry pi GS camera;

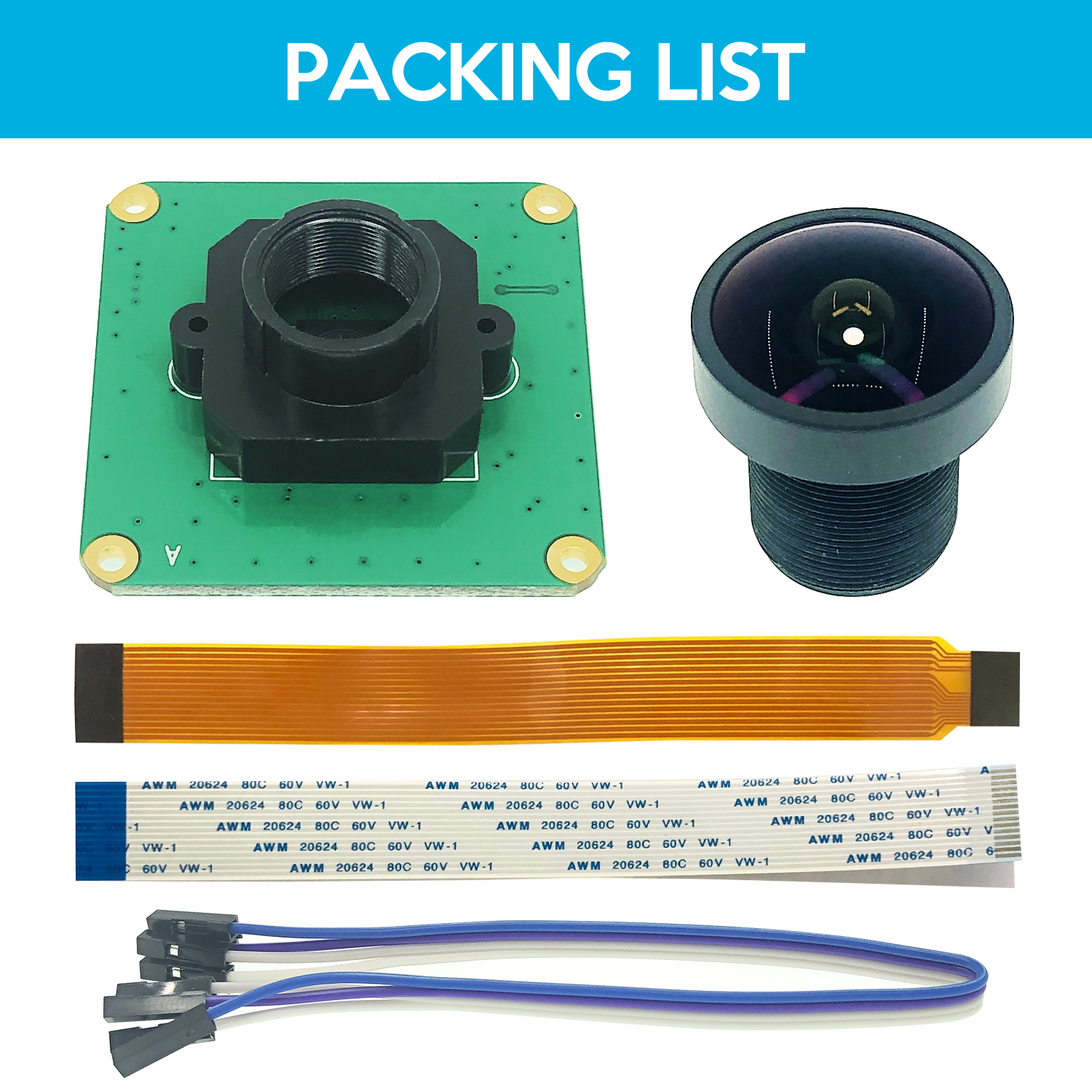

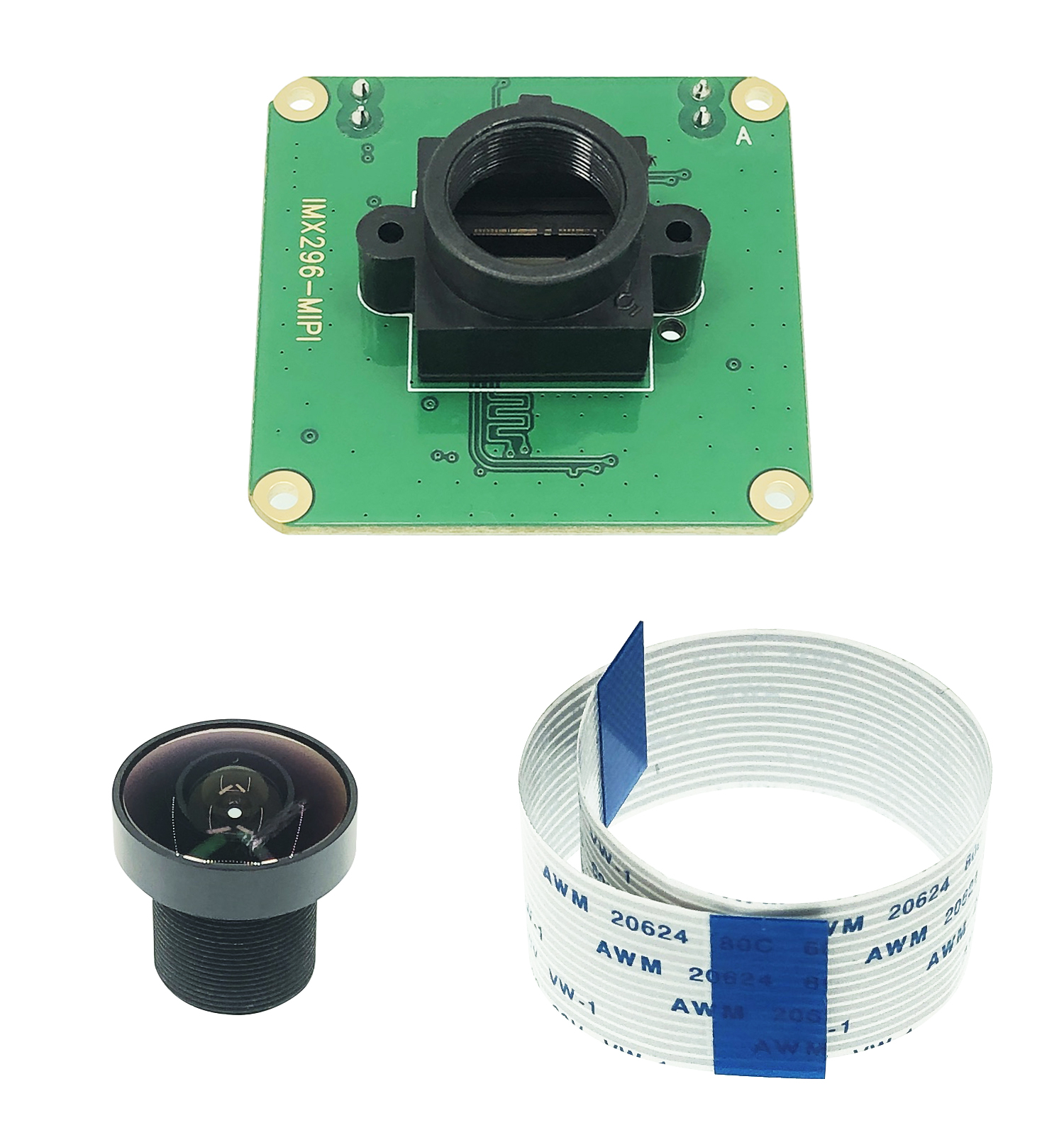

  • Comes with 1x M12 Len-seat and 1xCS Len-Seat, 1x M12 wide angle Len;

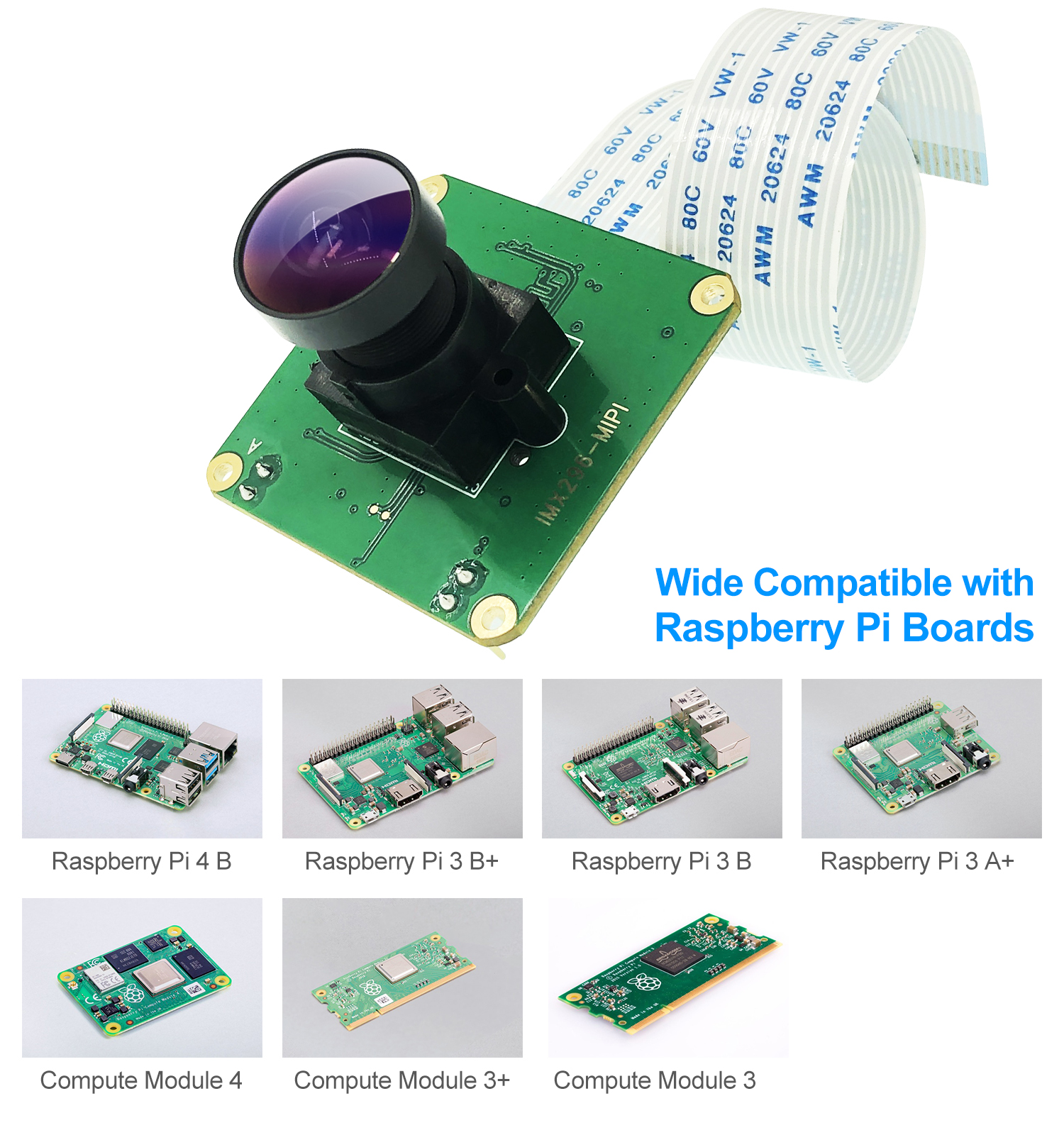

  • Support Pi 4B/Pi 3B+/Pi 3B/Pi 3A+/CM4/CM3+/CM3 Directly with libcamera tools;
  • Output format Y10 with Resolution 1456*1088 up to 60fps (InnoMaker Driver);
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);

Sensor Features:

This chip operates with analog 3.3V, digital 1.2V, and interface 1.8V triple power supply :

  • low power consumption.
  • High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: Sensing)

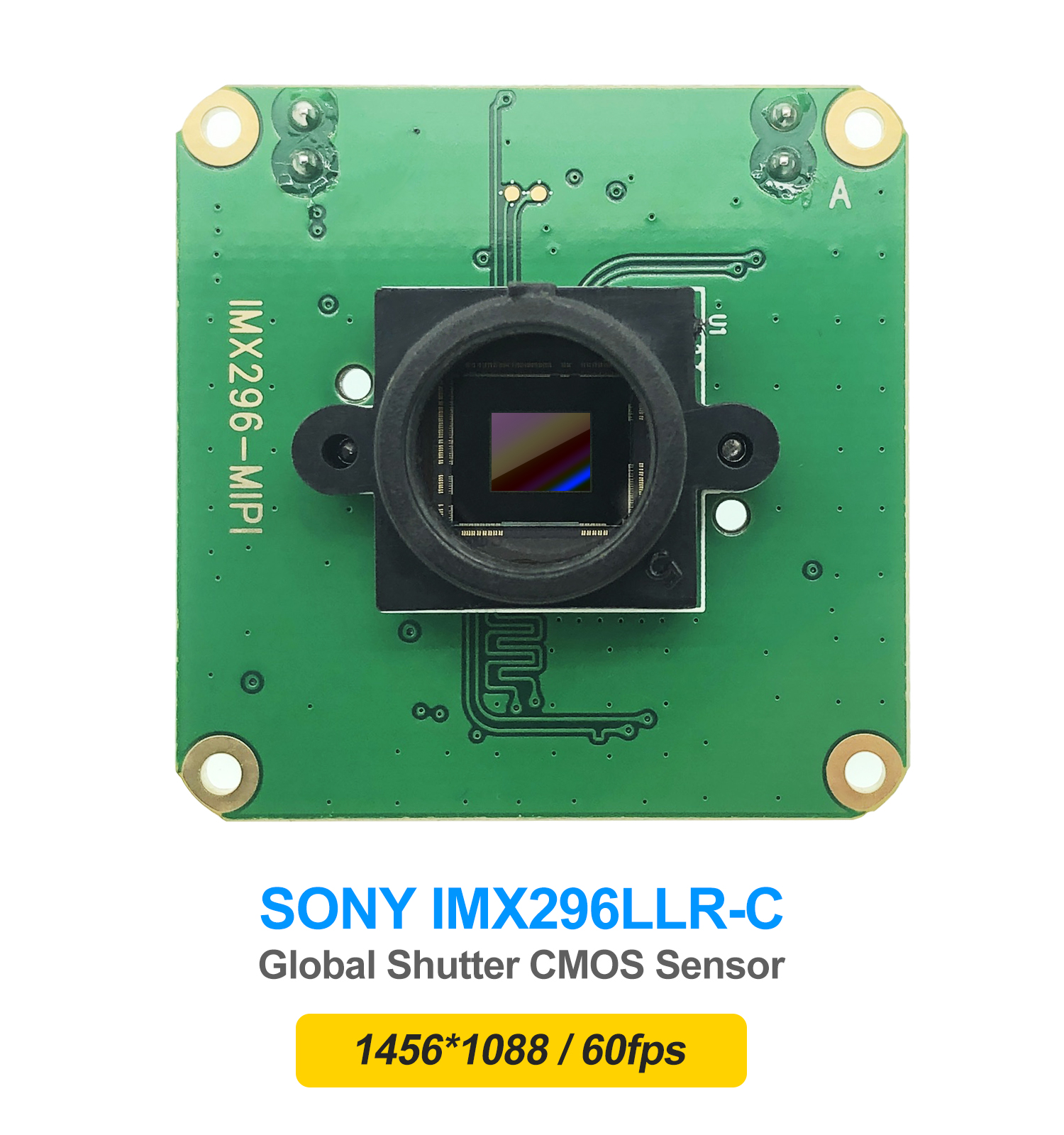

Sony IMX296LLR Sensor
FPS (Sensors): 60.3 fps
Pixel Size (Sensors): 3.4µm x 3.4µm
Resolution (Sensors): 1.58M
Scan/Series: Pregius
Shutter (Sensors): Global
Signal (Sensors): Monochrome
Sensor Size 1 / 2.9

Quick Start:

step1, “sudo nano /boot/config.txt”,add “dtoverlay=imx296” to the last line;
step2, “sudo nano /boot/cmdline.txt”,add “cma=128M” to the last line; Save and Reboot.
step3, “libcamera-vid –width 1456 –height 1088 -t 0” for review
