Key Feature

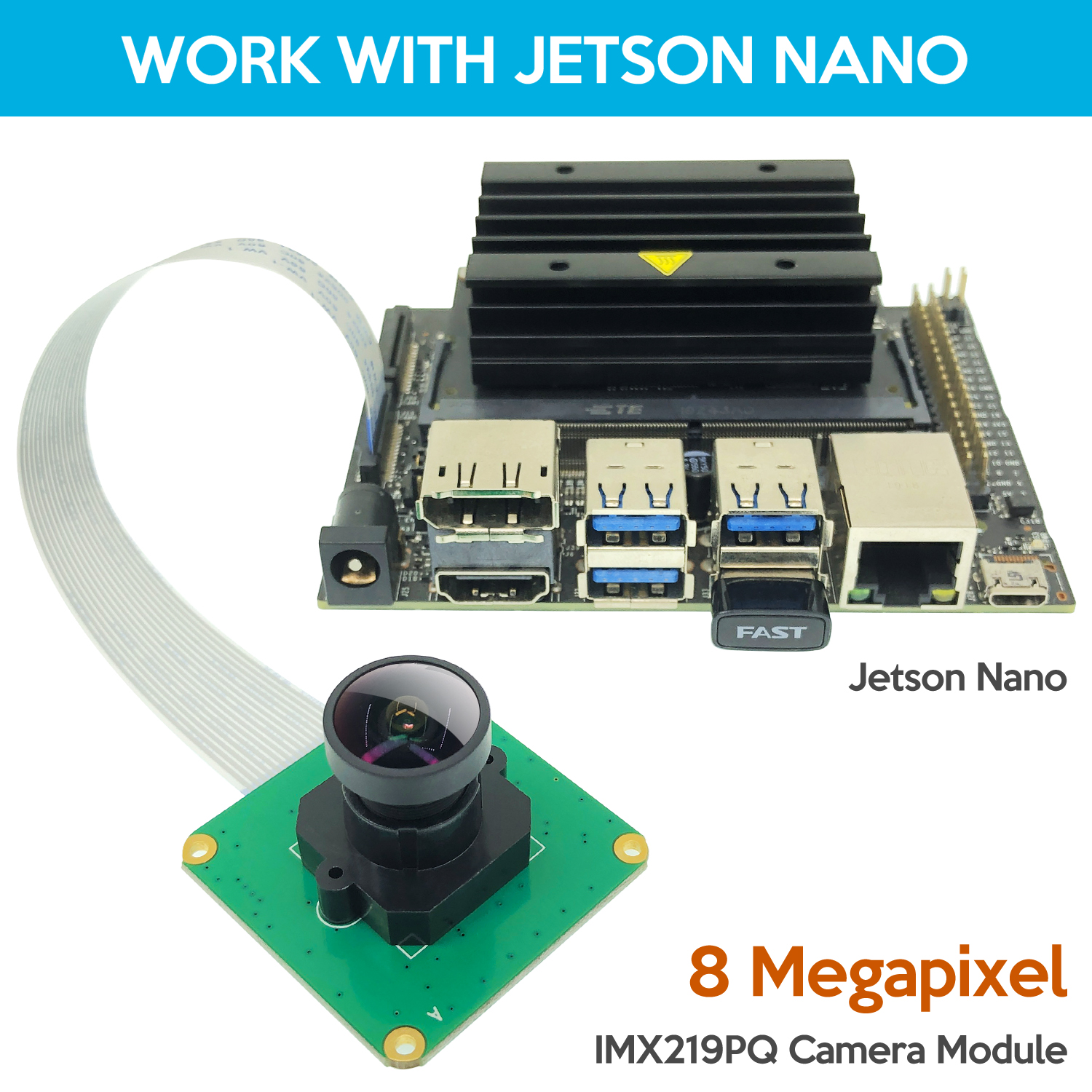

- Support Jetson Nano,CM4/CM3+/CM3/CM1;

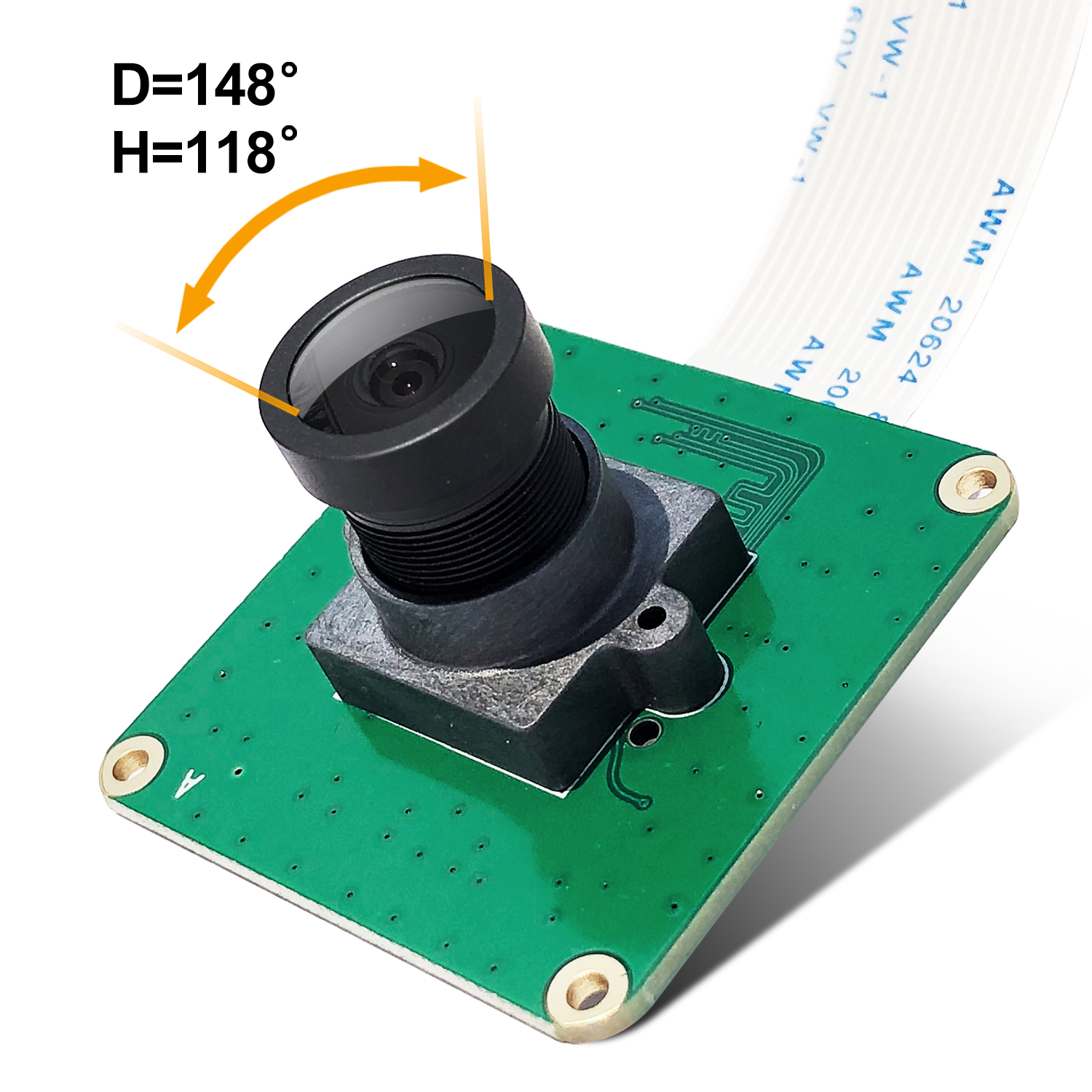

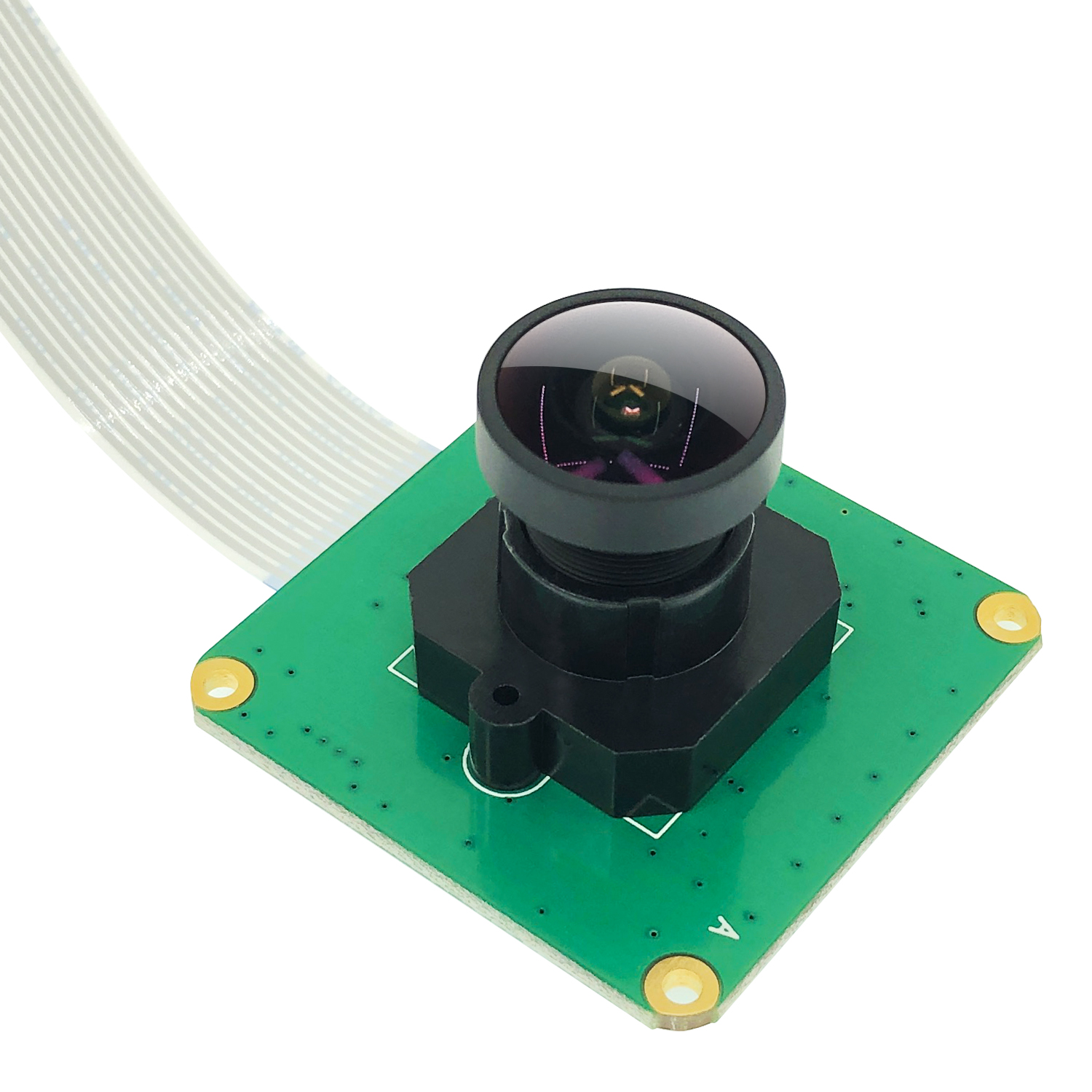

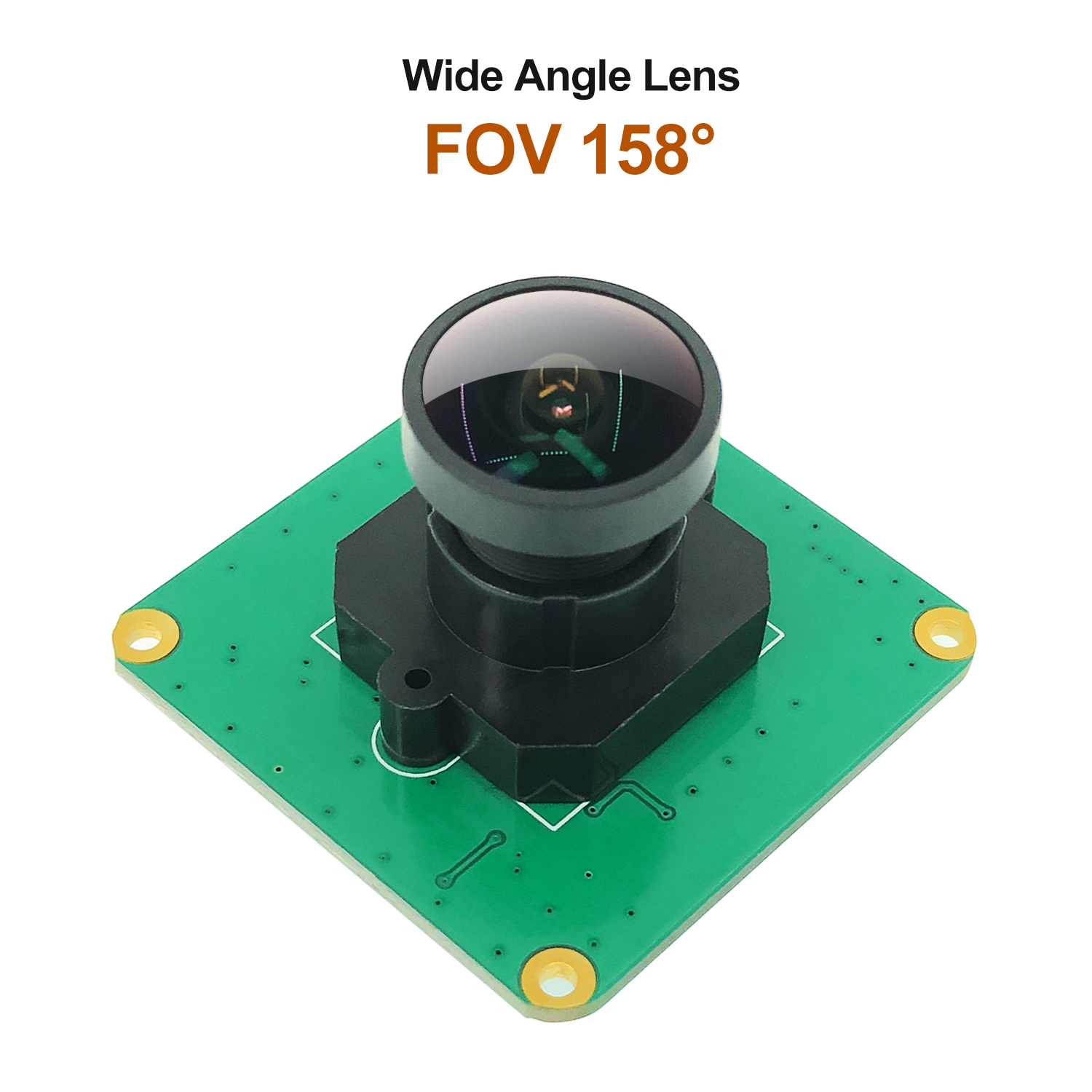

- CAM-IMX219 is a low-cost wide angle view camera module;
- We have the same hardware which support Raspberry PI4/PI3 B+/PI3/PI2,please contact :
sales@cn.inno-maker.com
Sensor

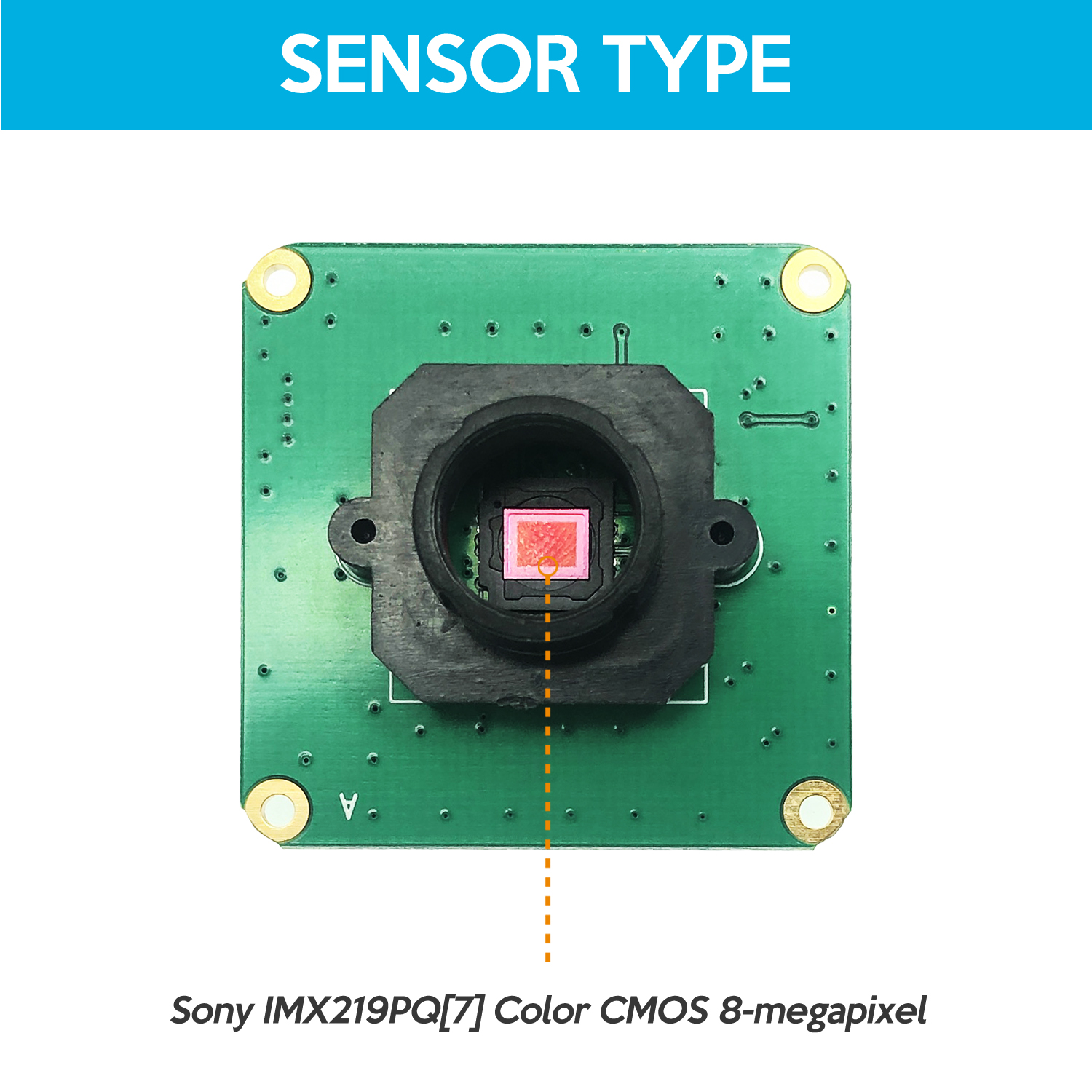

- Sensor type: Sony IMX219PQ Color CMOS 8-megapixel
- Sensor size: 3.674 x 2.760 mm (1/4″ format)
- Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
- Pixel Size: 1.12 x 1.12 um
- 1 – 1080P30 cropped (680 pixels off left/right, 692 pixels off top/bottom), up to 30fps
- 2 – 3240×2464 Full 4:3, up to 15fps
- 3 – 3240×2464 Full 4:3, up to 15fps (identical to 2)
- 4 – 1640×1232 binned 4:3, up 40fps
- 5 – 1640×922 2×2 binned 16:9 (310 px crop T/B before binning), up to 40fps
- 6 – 720P bin+crop (360 px L/R, 512 px T/B before binning), 40..90fps (OC: 120fps)
- 7 – VGA bin+crop (1000 px L/R, 752 px T/B before binning), 40..90fps (OC: 120fps)

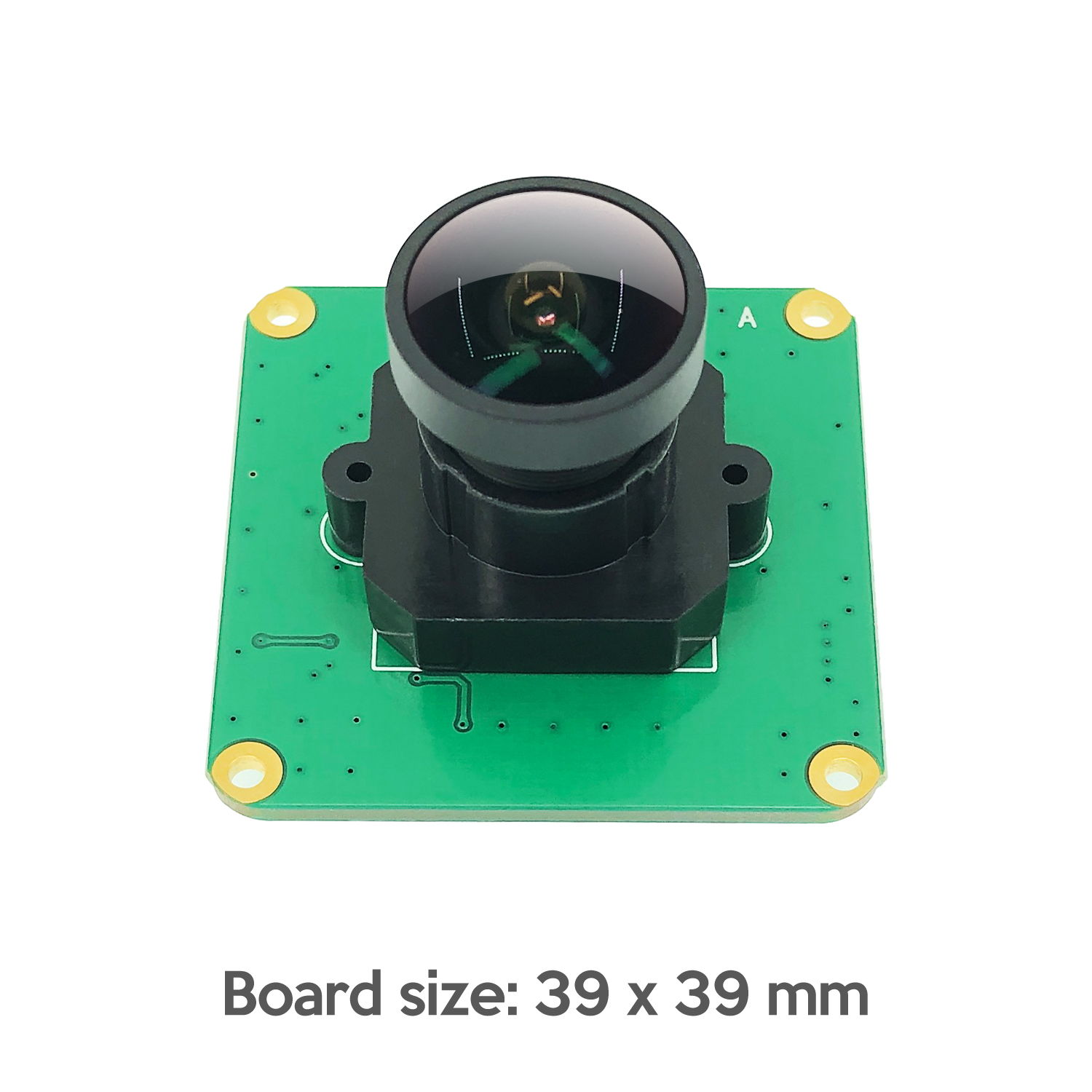

- Board size: 39 x 39 mm
- Mounting Holes: 4xD=2.20 mm
